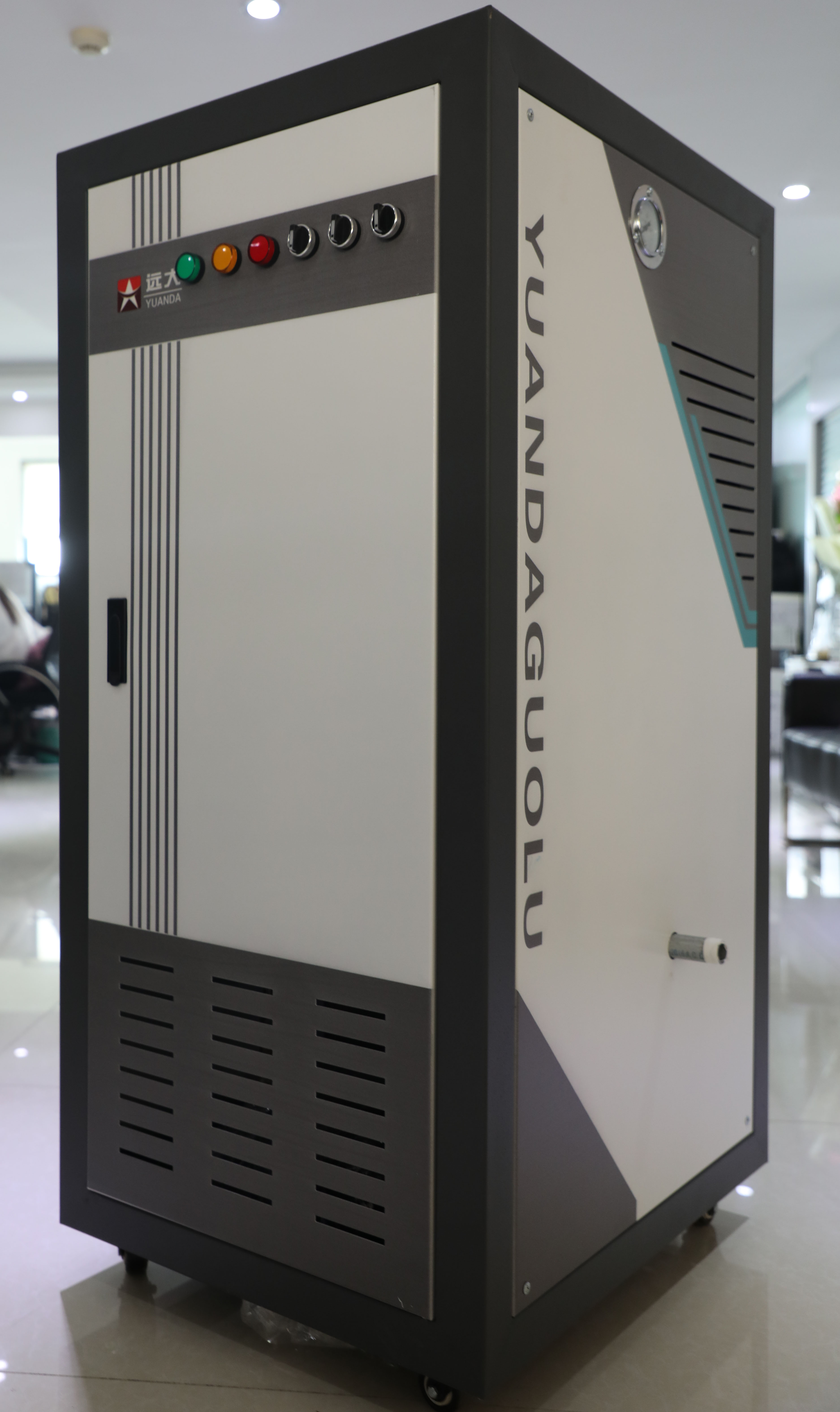

50kg/h Electric Steam Generator for Shower Room

  • 50kg/h Electric Steam Generator for Shower Room
  • 50kg/h Electric Steam Generator for Shower Room
  • 50kg/h Electric Steam Generator for Shower Room
  • 50kg/h Electric Steam Generator for Shower Room

50kg/h Electric Steam Generator for Shower Room

    Unit Price: 1000 USD
    Min. Order: 1 Set/Sets
    Packaging: The boiler main unit and the large auxiliary equipment are naked, and other precision instruments or small auxiliary equipment are packed in wooden boxes.
    Productivity: 2000Sets/Year
    Brand: Yuanda
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 2000Sets/Year
    Certificate: ISO,CE,SGS,TUV
    Port: Qingdao,Shanghai,Tianjin

Basic Info

Model No.: LDR

Product Description

Electric Steam Generator has a higher thermal efficiency while radiation loss is minimal. With a carefully calculated heat to steam ratio, operating pressure is achieved quickly with maximum efficiency. Small electric steam generator has no exhaust going out the stack as associated with fossil fuel; therefore, vertical electric steam generator will be environmentally friendly. There is no NOx emission to the atmosphere.The automatic electric steam generator is excellent absorption of similar products from Europe and USA, the new design is based on domestic actual situations. All internal piping and electric steam generator control system has been connected before delivering the factory. One-touch automatic control, safety, energy saving, environmental protection, durability, high output and low consumption, meanwhile thermal efficiency as high as 98%.

Product features

1.Pressure control system
Imported pressure controller circuit, high design stability, high accuracy of red flag pressure gauge, accurate display
2. Thicken stainless steel casing
304 thicken stainless steel shell, using special painting process, the shell is beautiful and durable, can be customized into food grade stainless steel
3.High temperature and high pressure water pump
The high-pressure vortex water pump of the iron body has good corrosion resistance and good passability, and the residual heat of the exhaust gas can be recovered by about 20%.
4.stainless steel heating tube
Wall thickness 1 mm, stamped and sealed, non-ordinary product welding, no leakage, no expansion and long service life
5.Brass liquid level float
Natural magnet copper level controller, anti-oxidation, anti-corrosion, prolongs service life, suitable for multi-water use
6.Stainless steel mechanical float
Stainless steel mechanical float ball has good corrosion resistance, and the ball has a threaded port, which can be replaced and repaired easily.

Product parameters

Model No. YD-CH36 YD-BH48 YD-BH72
Application Steam Generator Steam Generator Steam Generator
Power Electric Electric Electric
Number of Drums Single Singel Single
Pressure(mpa) 0.7 0.7 0.7
Rated Voltage(v) 380 380 380
Rated Power(kw) 36 48 72
Steam Capacity(kg/h) 50 65 100
Saturated Steam Temperature(C) 171 171 171
Steam Pipe Diameter(mm) 25 40 40
Sewage Pipe Caliber(mm) 25 40 40
Inlet Pipe Diameter(mm) 25 40 40
Thermal Efficiency 98 98 98
Cyclic mode







Structure Water Tube Water Tube Water Tube
Length(mm) 770 870 870
Width(mm) 570 630 630
Hight(mm) 1060 1160 1160

Product advantages

Product application
1.Ironing washing industry: dry cleaning machine, dryer, washing machine, dehydrator, ironing machine, iron, etc.
2.Electroplating cleaning industry: bath of plating bath, acid bath, cleaning pool heating constant temperature;
3.Food processing industry: tofu machine, rice noodle machine, steam box, sterilization tank, chartered plane;Application of coating equipment, sealing machine and other equipment;Hotels, enterprises and institutions canteen and various service stations disinfection, steamed rice and water supply and other industries;
4.Biological chemical industry: fermentation tank, reaction kettle, interlayer pot, mixer, emulsifying machine and other supporting use;
5.Packaging machinery industry: the label machine set standard machine supporting use;
6.Other industries :(oil field, automobile) steam cleaning industry,( 58626378,hotel, dormitory, school) steam heating or hot water supply,( 58626379,bridge, railway) concrete curing, etc.
