Photoelectric Coding M-Bus Remote Reading Water Meter
Payment Type: | T/T |
---|---|
Terms of Trade: | FOB |
Min. Order: | 1000 Bag/Bags |
Delivery Time: | 30 Days |
Packaging: | cartons |
---|---|
Productivity: | 5000 every day |
Brand: | GAOXIANG |
Transportation: | Ocean |
Place of Origin: | CHINA |
Supply Ability: | 5000 every day |
Certificate: | ISO9001 ISO4064 |
Basic Info
Install: Horizontal
Medium Temperature: Cold Water
Level Measurement: B
Counter Instructions: Digital
Nominal Diameter: 15-50mm
Application: Civil
Principle: Speed of Water Meter
Medium Pressure: General Water Meter
Work Environment: Dry Water Meter
Stucture: Wireless Communicating
Product Description
Photoelectric Coding M-Bus Remote Reading Water Meter
Product Description
What is the details for Pulse Output Water Meter?
Product Description--Pulse Output Water Meter
It is equipped with a reed switch assembly which can be connected to remote reading system, The Reed Switch Pulse sends out electric signals per a preset water quantity.
What is the details for Pulse Output Water Meter?
Product Description--Pulse Output Water Meter
It is equipped with a reed switch assembly which can be connected to remote reading system, The Reed Switch Pulse sends out electric signals per a preset water quantity.
1. Features
--Magnetic drive, protected against external magnetic tampering;
--Vacuum sealed register, frost resistant, keeps clear reading for long time;
-Brass body;
--Brass body can be painted
--External adjusting device;
--For cold water;
--Remote transmission device can be added upon request
--Many kinds of sensors; such as Reed Switch; Hall and Weagand can be supplied upon request Pulse output may be 1l, pulse 10l,pulse;
--The meters conform to ISO4064 Standard Class B
2. Working condition;
--Water temperature≤50°c
--Water pressure≤1MPa PN, 1, 6MPa; 16bar;
--ΔP≤0 1MPa; Class B;
--ΔP≤0 063MPa; R80; R100;
3. Accuracy:
From minimum flow-rate qmin; inclusive to transitional flow-rate qt exclusive ±5%
From transitional flow-rate; qt; inclusive, to overload flow-rate ; qs; exclusive ±2.
--Magnetic drive, protected against external magnetic tampering;
--Vacuum sealed register, frost resistant, keeps clear reading for long time;
-Brass body;
--Brass body can be painted
--External adjusting device;
--For cold water;
--Remote transmission device can be added upon request
--Many kinds of sensors; such as Reed Switch; Hall and Weagand can be supplied upon request Pulse output may be 1l, pulse 10l,pulse;
--The meters conform to ISO4064 Standard Class B
2. Working condition;
--Water temperature≤50°c
--Water pressure≤1MPa PN, 1, 6MPa; 16bar;
--ΔP≤0 1MPa; Class B;
--ΔP≤0 063MPa; R80; R100;
3. Accuracy:
From minimum flow-rate qmin; inclusive to transitional flow-rate qt exclusive ±5%
From transitional flow-rate; qt; inclusive, to overload flow-rate ; qs; exclusive ±2.
4. Installation And Usage for the Pulse Output Water Meter
Select the right water meter according to nominal flow rate which is less than or next to the rate through the pipe. It is not a good way for the user to buy the water meter based on the pipe size.
The place to be installed should be free from sunshine, frost, pollutant and water. During the period of frost, the inlet Valve in the meter should be closed and the outlet valve and water tap should be open except for being packed for thermal insulation, thus to prevent the damage from being frozen.
Meter should be installed horizontally;and the digits on the dial is up to the face and arrow direction in the meter should be same with the flow;
The stone, sand and slight impurities in the new installed pipe should be cleared off for the sake of the meter fault;
For the purpose of metering accurately, the water tap should be higher than the meter;
Water meter should be not connected with pipe and there are live interface (e.g. pipe interface, connection screw, sealing washer etc.) between the meter and pipe. The meter should not be damaged due tothe over-stress caused by pipe and its elements during installation.
1. Materials, brass body, ABS inner core, brass sealing ring, pulse output wire
2. Working Condition, Temperature ≤50°C
3. Measured by Cubic Meter
4.Quantity of Flow:
Main Technical Data For Pulse Output Water Meter
Select the right water meter according to nominal flow rate which is less than or next to the rate through the pipe. It is not a good way for the user to buy the water meter based on the pipe size.
The place to be installed should be free from sunshine, frost, pollutant and water. During the period of frost, the inlet Valve in the meter should be closed and the outlet valve and water tap should be open except for being packed for thermal insulation, thus to prevent the damage from being frozen.
Meter should be installed horizontally;and the digits on the dial is up to the face and arrow direction in the meter should be same with the flow;
The stone, sand and slight impurities in the new installed pipe should be cleared off for the sake of the meter fault;
For the purpose of metering accurately, the water tap should be higher than the meter;
Water meter should be not connected with pipe and there are live interface (e.g. pipe interface, connection screw, sealing washer etc.) between the meter and pipe. The meter should not be damaged due tothe over-stress caused by pipe and its elements during installation.
1. Materials, brass body, ABS inner core, brass sealing ring, pulse output wire
2. Working Condition, Temperature ≤50°C
3. Measured by Cubic Meter
4.Quantity of Flow:
Main Technical Data For Pulse Output Water Meter
Basic Info
- Model NO.: LXSG-15E-50E
- Medium Temperature: Cold and Hot Water Meter
- Counter Instructions: Digital
- Application: Civil
- Medium Pressure: Pn16
- Stucture: Wireless Communicating
- Diameter: 15-25mm
- MOQ: 100piece
- Specification: ISO9001, CQM,
- HS Code: 90282010
- Install: Horizontal
- Level Measurement: B
- Nominal Diameter: 15-25mm
- Principle: Speed of Water Meter
- Work Environment: Dry Water Meter
- Materail: Brass or Iron
- Cert: ISO9001
- Trademark: gaoxiang
- Origin: Shangdong, Chian

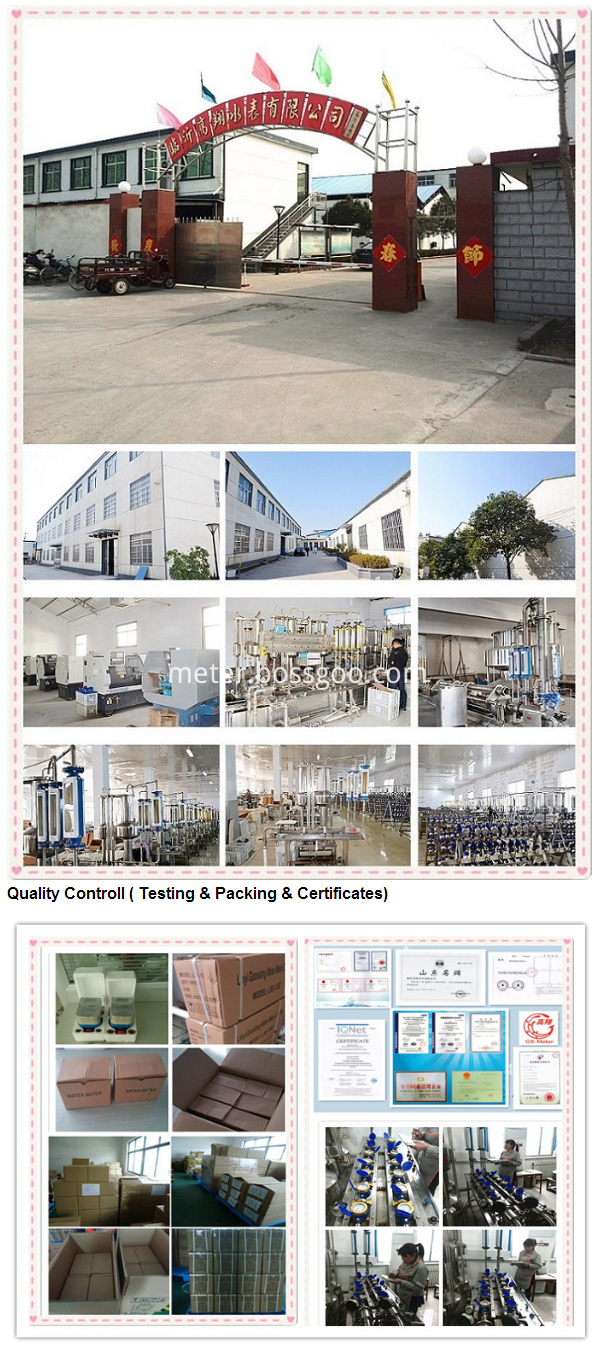

Welcome to visite our factory

Founded in 2005, LINYI GAOXIANG WATER METER Co., Ltd. Over many years, we have developed into one of the smart meter, energy meter professional manufacturer, incorporate case casting, CNC maching, water meter calibration and assembling a table. The company has always been pioneering and innovative, proactive. Started in 2006, LINYI GAOXIANG WATER METER Co., Ltd. Decided to the smart meter research and production. Now the company cover of square meter. The current production exceeds 1.5 million pieces of meters per year placing GX WATER METERS in a leading position both at national market and technology level. GX WATER METERS operates both nationally and internationally in the fields of the water companies, residential companies, the industry and the private market. The product range includes rotary wing type single and multi-jet water meters with mechanical or magnetic transmission, Smart water meters, Ultrasonic meters, IC prepaid meters, Thermal energy meters and Heat meters with direct reading or complete with integrated modules for the remote transmission of the consumption data. In addition to a high quality level of models and accessories produced by the company of our own, the water meters are characterized by plenty of innovative designs and quickly capture the market in very competitive prices. The Company is able to meet you customers' requirements starting from the design phase until the complete realization of the meter. LINYI GAOXIANG WATER METER Co., Ltd. Who takes the quality of products as the life of the enterprise, consistently focuses on brand building and product quality. All water meters possess approval certificates in the ISO 4064 regulations. The company is certified with the ISO 9001: 2008 and operates in compliance with the National Regulations for the activities of testing and metrology calibration. The company located in the "hometown of water meter", Baishabu of Linyi City in East China, as the forming of comprehensive system of research, design, production and testing, we supply both all types of water meter and other spare parts and OEM customized service. You are warmly welcome to visit for cooperation.
