Commercial Beer Brewing Equipment
|Terms of Trade:||FOB,CFR,CIF,EXW|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Packaging:||wooden case or fix in container|
|Place of Origin:||China|
|Supply Ability:||10 set per month|
Model No.: DHB-1000-3
Commercial Beer Brewing Equipment
3 vessel automatic brewhouse ( German style )
The typical commerical beer brewing equipment we provide is 1000L 3 vessel automatic brewhouse, 1000L fermentation tank and all neccessary accompanying equipment.
- Mash - Wort kettle ( steam heating )
- Lauter Tun
The specification of this brewhosue includes, but not limited to
1. 3 vessels fully insulated, mounted on a frame or be with legs as to customers' requirement.
2. In our brewhosue and components, SUS304 stainless steel or above standard material are completely used.
3. Convenient cabinet control of all brewing process, automatic operation of valves on touch panel.
4. Steam heating
The details of the brewhouse is featured as following photos and descriptions:
Siemens Control system and touch panel
Agitator and SEW motor
Internal Wort Cooker
Underback with level sensors
Lauter tun manhole security sensor
Pneumatic valves and pipwworks
Danfoss brew water mixer

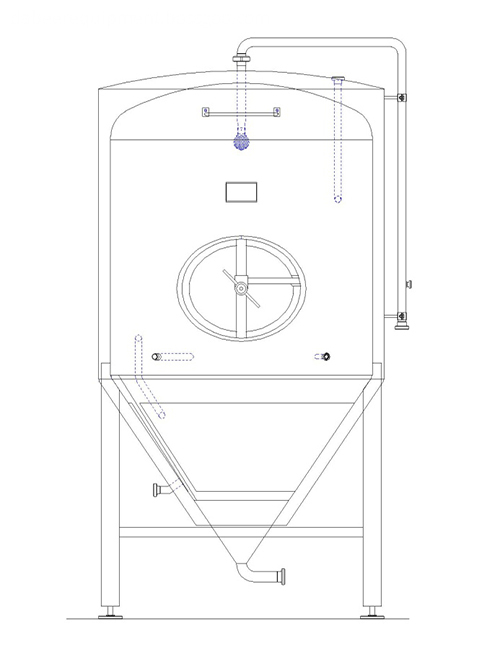

10 hl fermentation tank and conditioning tanks 10 pcs
1. Conical fermentation tank and horizontal lagering tank are available.
2. SUS304, internal wall 3mm, inner welds polished; outer shell 2mm, surface polished.
3. With cooling jacket on cylinder and conical bottom. Equipped with chiller and glycol tank.
4. Manhole on the top, top CIP spray heads, security Valve and pressure measurement.
5. Conical fermenter is 60 degree bottom, drain at the center of bottom, equipped with sample tap, temperature sensor, beer faucet.
6. Cold water inlet and outlet.
7. PU insulation 50mm.
- double walled, completely insulated
- upright construction, test pressure 3 bar
- upper bottom as dished head
- lower bottom as conical bottom with opening angle 60°
- upper bottom
- 1 connection piece DN 25/25
- for RLV fitting with CIP connection piece DN 25
- 2 crane eyes
- 1 manhole 350 x 450 mm
- 2 connections for cooling, welding nipple R ½[
- 1 thermometer
- 1 connection piece R ½[
- 1 outlet DN 32
- 3 feet made of stainless steel with pressure plates
- 1 sampling tap
- Surface: inner welds polished inside,
- Outer welds polished and stained
Hot water tank 20hl
stainless steel consturction, capacity 100kg / h, two roller, gauge adjustable
Cooling plant – Glycol for wort and vessel cooling
- in compact design:
- for internal installation
- made as one-circle system
- refrigerant: R134a
- glycol wage: 20%
Keg filling machine
KEG Filling and cleaning machine Multimat MT2
Additional bottle cleaning station (6 position)
Addtional bottle filler AF80
Malt Mill, Malt Conveyor, Malt Transport Pump, Wet Malt Mixer, Heat Exchanger, Hops Gun, Yeast Cultural Tank, Air compressor, Steam Generator, Chiller and all other accompanying equipment are available from our company. Please write down your equipment list, we make a configuration and complete turnkey solution for you.
Dongguan Deao Food Equipment Co.,Ltd
Deao Beer Equipment Co.,Ltd locates in north Pearl River Delta, Dongguan city, where is the manufacturing heartland in China. Our workshop area is larger than 20,000 square meter,specialized in craft brewing equipment, microbrewery system, homebrewery, keg washing and filling machine since 2012. The company was established by Mr. Wang Guodong, though the company is very young, Mr. Wang has been in beer equipment industry for more than 20 years. In 2014 Deao collaborates with BTB Engineering from Germany, which is a professional brewing equipment manufacturer since 1996. We continue to develop different types of products at highs tandard quality for local and international clients. Deao has a team of brewmaster and brewers. They can help our clients to learn equipment operating and beer brewing efficiently. The beer consumption is growing fast all over the world, especially in Asia, Australia and America. Deao constantly provide customers with high quality equipment, fast after sales service and beer marketing consultant. Welcometo take a drink in our company, cheers!
- Company Name: Dongguan Deao Food Equipment Co.,Ltd
- Representative: Lan Si Bi
- Product/Service: Brewery Equipment , Microbrewery Equipment , Craft Brewing System , Beer Brewing Equipment , Beer Machine , Industrial Brewery Machine
- Capital (Million US $): 5000000RMB
- Year Established: 2016
- Total Annual Sales Volume (Million US $): US$1 Million - US$2.5 Million
- Export Percentage: 41% - 50%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: 2
- No. of R&D Staff: Fewer than 5 People
- No. of QC Staff: Fewer than 5 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 10,000-30,000 square meters
- Factory Location: Hengli Town, Dongguan
- Contact Person: Mr. Darwain Wang
- Tel: 86-0769-82868162
